See the Difference
Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.
Complete FishReveal Views
Get the best of CHIRP sonar and Imaging sonar on one display with FishReveal™. First introduced with DownScan Imaging™, FishReveal is now available on SideScan*, making it quicker and easier to recognize fish targets – along with picture-like images of structure on both sides of your boat.
*The FishReveal SideScan view requires an optional S3100 sonar module.
Designed for Clarity

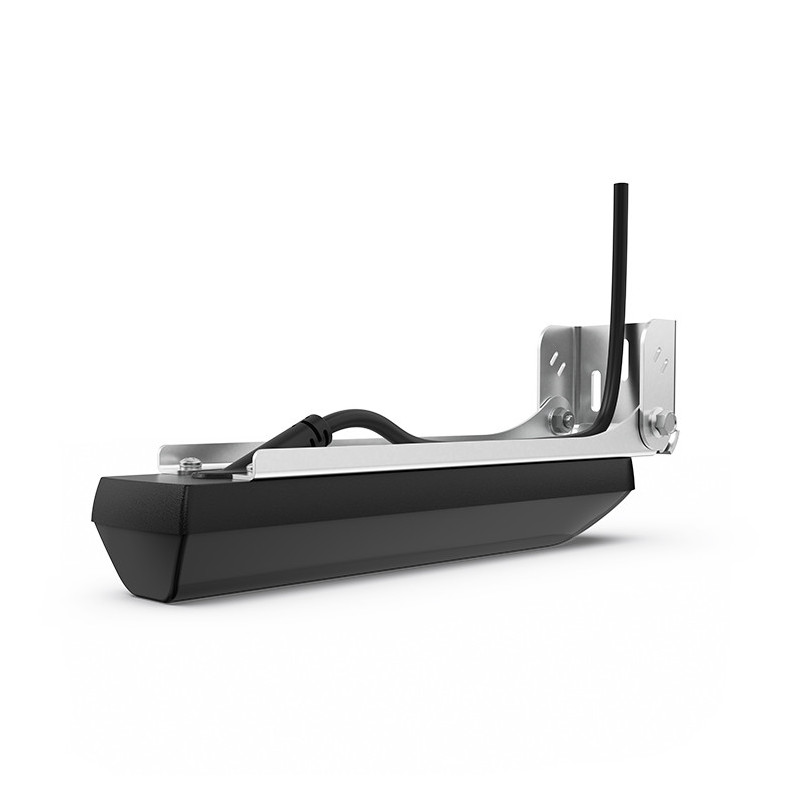

The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.
*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS Pro
Active Imaging HD 3-in-1 shows users the clearest, highest resolution images of fish and structure:
Transducer Options Available:
•ActiveImaging HD 3-IN-1
•ActiveImaging HD 2-IN-1
•ActiveImaging HD 3-IN-1 Fish Reveal M/W *requires S3100 module
•ActiveImaging HD 3-IN-1 Fish Reveal HW *requires S3100 module
•ActiveImaging HD 3-IN-1 Ghost Nosecone
•Active Imaging HD allows for supporting Lowrance users to select the desired frequency for Side and Down separately so the angler can pick the right range/resolution for the desired view.
SideScan Frequencies Low CHIRP Freq. : 455 kHz (445-495 kHz)
High CHIRP Freq. : 1075 kHz (1065-1115 kHz)
DownScan Frequencies Low CHIRP Freq. : 700 kHz (690-740kHz)
High CHIRP Freq. : 1200 kHz (1190-1240 kHz)
Side/Down Independently Selectable Freq. Yes, Independently mix-and-match side and down frequency ranges to get the picture that you want
Range Max 150ft range at High Frequency
Max 300ft range at 455 (Low Frequency)
Compatible Displays Direct connect to: HDS Pro
Ethernet connect to via S3100: HDS Live, EliteFS
